Solar Range

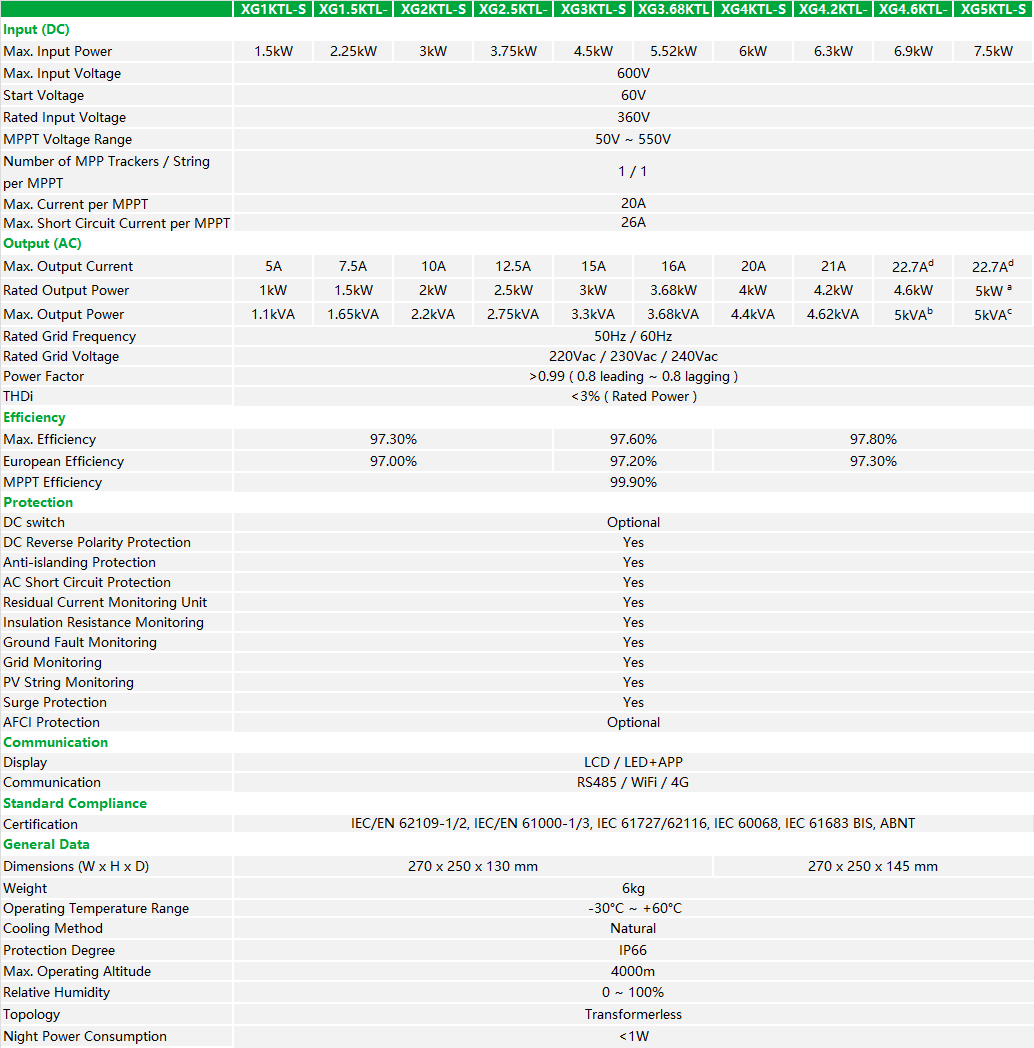

XG1-5KTL-S Single-phase On-grid Solar Inverter
XG1-5KTL-S is a Single-phase On-grid Solar Inverter developed by INVT Solar specifically for residential users, with small size, light weight, easy installation and maintenance, and excellent cost performance.
Efficient & Higher Revenue
* 150% DC Input Oversizing
* Wide MPPT voltage range: 50V-550V
* Max. input current per string: 20A，Compatible with high power modules
Intelligent, Simple O&M
* Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
* Intelligent Fault Detection: AC side voltage and current waveforms real-time recorded, fast fault location
* Support RS485/WiFi/4G: remote monitoring and operation via PC or mobile phones
Reliable & Worry Free
* IP66 Protection Degree: support outdoor installation
* AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
XG100-136KTR Three-Phase On-Grid Solar Inverter
XG100-136KTR three-phase on-grid solar inverters have high power density and are equipped with one-stop intelligent data management platform to provide flexible and efficient solutions for larger industrial and commercial power stations, large poverty alleviation power stations and large ground power stations.
Efficient
Higher Revenue
9-12 MPP Trackers, high single circuit tracking accuracy, fast dynamic response and higher power generation
150% DC Input Oversizing
Maximum efficiency of 98.7%. Wide MPPT voltage range: 180V-1000V
Compatible with high power modules
Intelligent
Simple O&M
Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
Support RS485(WiFi/DRM/Bluetooth optional): remote monitoring and operation via PC or mobile phones
Reliable
Worry Free
IP66 Protection degree: support outdoor installation
DC & AC Type II SPD: prevent lightning damage
AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
XD3-6KTL-AIO Energy Storage System
Efficient & Higher Revenue
* Max. Efficiency 97.5%
* 2 MPP trackers, 160% DC input oversizing
* Max. charging/discharging current 100A for faster power backup
* Max. PV input current 16A, compatible with high-power modules
Reliable & Worry-Free
* DC & AC Type II SPD: prevent lightning damage
* High ingress protection rating of IP65: supports outdoor installation
* Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
* EPS Switching Under 10ms, UPS-level switching
Flexible & Abundant Configuration
* Easy-install, quick-stack design
* Modular design allows for scalability and customization
* Multiple working modes and support parallel access to PV, batteries, normal loads, EV chargers, and grids
* Support RS485/CAN/WiFi/4G/LAN/Bluetooth optional: remote monitoring and operation via PC or mobile phones

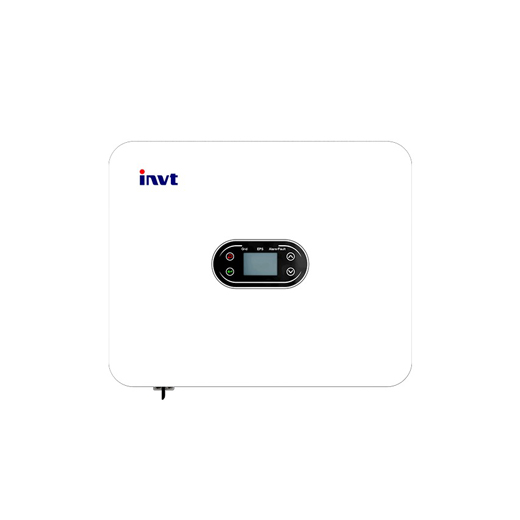

XD3-6KTL Single-phase Hybrid Inverter
Efficient
Higher revenue
Max. Efficiency 97.5%
Max. PV Input Voltage 600V
150% Peak Output Power
2 MPP Trackers, 150% DC Input Oversizing
Max. PV Input Current 16A, Compatible with High Power Modules
Intelligent
Simple O&M
IP66 Protection Degree: support outdoor installation
Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
DC & AC Type II SPD: prevent lightning damage
Battery Reverse Connection Protection
Flexible
Abundant configuration
Plug & Play, EPS Switching Under 10ms
Compatible with Lead-acid and Lithium Batteries
Max.6 units Inverters Parallel
AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
